Contents >> 1. Introduction

PURPOSE

The main purpose of the Australian Standard Geographical Classification (ASGC) and the Census Geographic Area Classifications is to provide a framework for the collection and dissemination of geographically classified statistics. These are statistics with a 'where' dimension. This publication briefly describes all of these classifications but provides details only on the Census Geographic Areas.

Full details of the ASGC structures are provided in Statistical Geography Volume 1 Australian Standard Geographical Classification (ASGC) (Cat. no. 1216.0) and Statistical Geography Volume 3 Australian Standard Geographical Classification (ASGC) Urban Centres/Localities (Cat. no. 2909.0).


ASGC

The ASGC is the primary geographical classification used by the ABS. It provides a common framework of statistical geography in both census and non-census years thereby enabling the production of statistics which are comparable and can be spatially integrated. It is a hierarchical classification system consisting of seven interrelated structures each designed to serve a specific purpose. The spatial units of some structures (the Main, Statistical Region, Section of State and Remoteness) aggregate to cover the whole of Australia, while the remaining structures (the Local Government Area, Statistical District and Urban Centre/Locality) cover only a part of Australia.


SPATIAL UNITS OF THE ASGC

The spatial units of the ASGC are as follows:

  • Census Collection District (CD);
  • Statistical Local Area (SLA);
  • Statistical Subdivision (SSD);
  • Statistical Division (SD);
  • State and Territory (S/T);
  • Statistical District (S Dist);
  • Local Government Area (LGA);
  • Statistical Region Sector (SRS);
  • Statistical Region (SR);
  • Major Statistical Region (MSR);
  • Urban Centre/Locality (UC/L);
  • Section(s) of State (SOS); and
  • Remoteness Area (RA).


CENSUS GEOGRAPHIC AREAS

The Census Geographic Areas described in this publication have been created so that census data may be made available for commonly used geographic areas other than those found in the ASGC. With the exception of the Journey to Work Destination Zones (JTWDZNPs), all Census Geographic Areas are formed by an aggregation of whole CDs. The CD is the smallest spatial unit of ASGC geography and is only defined in a census year. Census Geographic Areas are also defined only in a census year.

For the 2001 Census, the Census Geographic Areas are comprised of six separate classifications and spatial units as follows:
  • Commonwealth Electoral Division (CED);
  • State Electoral Division (SED);
  • Postal Area (POA);
  • State Suburb (SSC);
  • Australian Indigenous Geographical Classification (AIGC);
    • Aboriginal and Torres Strait Islander Commission (ATSIC) Region (AREG);
    • Indigenous Area (IARE);
    • Indigenous Location (ILOC);
  • Journey to Work
    • Journey to Work Study Area (JTWSAP); and
    • Journey to Work Destination Zone (JTWDZNP).


SUMMARY TABLES

Table 1 summarises the various ASGC structures and their component spatial units.
Table 2 summarises the number of ASGC spatial units and Census Geographic Areas.


1. SUMMARY OF ASGC STRUCTURES

ASGC Structure
Hierarchical levels
Component spatial units
Covers whole of
Australia?

Main
5
CD,SLA,SSD,SD,S/T
Yes
Statistical District
4
CD,SLA,SSD,S Dist
No
Local Government Area
4
CD,SLA,LGA,S/T(a)
No
Statistical Region
6
CD,SLA,SRS,SR,MSR,S/T
Yes
Urban Centre/Locality
2
CD,UC/L
No
Section of State
3
CD,SOS,S/T
Yes
Remoteness
3
CD,RA,S/T
Yes

(a) Only that part of the S/T which comes under the responsibility of an incorporated Local Government Council or selected Community Government Councils.


2. COUNTS FOR AUSTRALIAN STANDARD GEOGRAPHICAL CLASSIFICATION AND CENSUS SPECIFIC GEOGRAPHIC AREAS

Spatial unit
NSW
Vic.
Qld
SA
WA
Tas.
NT
ACT
OT(a)
Aust.

AUSTRALIAN STANDARD GEOGRAPHICAL CLASSIFICATION (EFFECTIVE 1 JULY 2001)

S/T State/Territory
1
1
1
1
1
1
1
1
1
9
SD Statistical Division(b)
13
12
12
8
10
5
3
2
1
66
SSD Statistical Subdivision(b)
50
46
31
21
29
9
12
8
1
207
SLA Statistical Local Area(b)
199
200
454
125
156
44
65
107
3
1,353
No. SLAs in Capital City SD
49
75
224
54
37
8
39
106
-
592
LGA Local Government Area(c)
175
79
126
69
143
30
9
1
1
633
S Dist Statistical District(d)
13
8
10
n.a.
4
2
n.a.
1
n.a.
35
MSR Major Statistical Region
2
2
2
2
2
1
1
1
1
14
SR Statistical Region
22
14
11
6
7
1
1
1
1
64
SRS Statistical Region Sector
25
14
29
6
7
3
2
1
1
88
CD Collection District (above CD counts include all Miscellaneous CDs)
11,706
8,642
7,184
3,173
4,407
1,072
498
515
12
37,209
No. CDs in Capital City SD
(Capital City CD counts include Miscellaneous CDs where applicable)
6,628
5,837
2,913
2,150
2,775
387
200
508
n.a.
21,398
RA Remoteness Area(b)
6
5
6
6
6
5
4
2
2
42
SOS Section of State(b)
5
5
5
5
5
5
4
3
3
40
UC/L Urban Centre/Locality
514
335
356
162
174
101
62
2
3
1709

CENSUS SPECIFIC GEOGRAPHIC AREAS (EFFECTIVE 7 AUGUST 2001)
CED Commonwealth Electoral Division(b)(e)(f)
51
38
28
13
16
6
3
2
2
157
SED State Electoral Division(b)(e)
94
89
90
48
58
25
25
3
n.a.
432
SSC State Suburb(e)(g)
754
421
1
374
308
120
47
1
1
2,027
POA Postal Area(e)(h)
597
653
405
311
312
106
25
24
2
2,435
AREG ATSIC Region(e)(i)(j)
7
3
9
4
10
2
8
1
2
37
IARE Indigenous Area(j)(k)
170
43
124
35
105
17
70
3
3
563
ILOC Indigenous Location(j)(k)
261
58
195
77
202
29
156
3
3
977

MISCELLANEOUS CDs (EFFECTIVE 1 JULY 2001)
Water CDs(l)
52
-
3
1
1
-
11
11
-
79
Nil CDs(l)
5
95
39
14
512
1
32
3
-
701
Off-Shore CDs(l)
1
1
1
1
1
(m)2
1
n.a.
n.a.
8
Migratory CDs(l)
1
1
1
1
1
1
1
n.a.
n.a.
7
Shipping CDs(l)
10
8
16
11
22
7
4
n.a.
n.a.
78

(a) Other Territories (OT) includes the Territories of Cocos (Keeling) Islands, Christmas Island and Jervis Bay.
(b) For each State and the NT, a code for Off-Shore, Shipping and Migratory CDs has been included.
(c) Includes a 9399 code Unincorporated State/Territory for each State/Territory.
(d) Statistical Districts can cross State/Territory borders. For the purposes of the above table, Statistical Districts that cross State/Territory borders are counted in each State/Territory (NSW 3, Vic. 1, Qld 1, ACT 1), but are counted only once in the Australia total.
(e) These Geographic Areas are derived on a ‘best fit’ basis of CDs to externally determined boundaries. They are often referred to as CD Derived Areas.
(f) The ACT Electoral Division of Fraser includes Jervis Bay and is counted in ACT and OT. The NT Electoral Division of Lingiari includes Christmas Island and Cocos (Keeling) Islands and is counted in NT and OT. Each is counted only once in the Australia total.
(g) State Suburb counts include an ‘unclassified’ suburb that occurs in each State/Territory as suburbs are only allocated for major population centres. It also includes Off-shore, Shipping and Migratory CDs. State Suburb boundaries are not allocated for Qld and ACT. However, SLA boundaries for major urban areas in Qld and the ACT approximate to suburbs.
(h) Includes the ABS assigned ‘dump’ postcode (x999) for each State/Territory. Postal Area boundaries may cross State/Territory borders, and are counted only once in the State/Territory of origin.
(i) The ATSIC Region, 01 ‘Queanbeyan’, crosses State/Territory borders and as such is counted in NSW, ACT and OT. It is counted once only in the Australia total.
(j) Includes a single code for Off-Shore, Shipping and Migratory CDs for each State and the NT. It is counted once only in the Australia total.
(k) Parts of Jervis Bay Territory are incorporated in a NSW Indigenous Area and Indigenous Location. These Indigenous Areas and Indigenous Locations are counted in OT as well as in NSW. They are counted only once in the Australia total.
(l) These CDs are included in the counts for ‘Collection District’ and ‘No. CDs in Capital City SD’ in the Australian Standard Geographical Classification part of the table.
(m) The second Off-Shore CD represents Antarctica and Macquarie Island. Expeditioners in Australian Antarctic Territories and Macquarie Island are counted in the second Off-Shore CD.

Note: n.a. - not applicable
n.y.a. - not yet available
Source: 2001 Census Fact Sheet. (Updated 30 August 2002 for web version of publication)

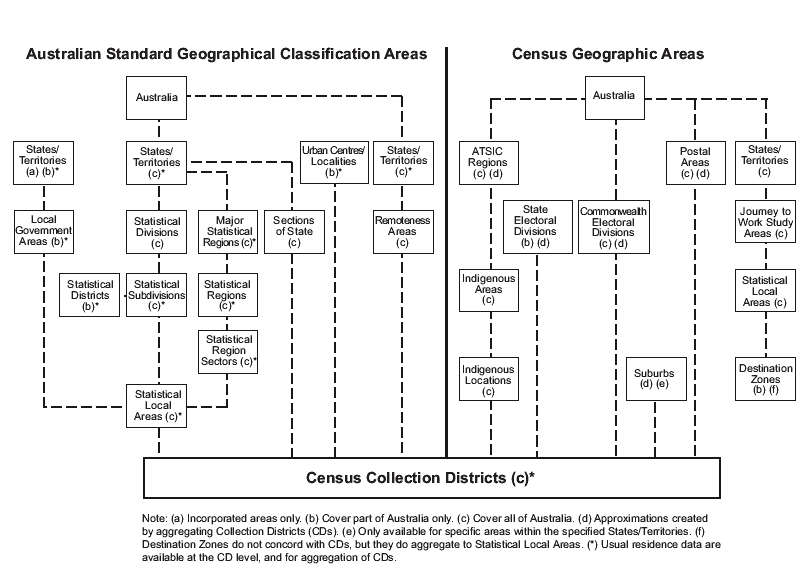

3. CENSUS GEOGRAPHIC AREAS STRUCTURAL CHART

The diagram below shows how the Census Geographic Areas relate to each other and to the ASGC.


PRINCIPLES OF THE CENSUS GEOGRAPHIC AREA CLASSIFICATIONS

Census Geographic Areas are constructed so that they fulfil practical user needs for spatial statistics while also conforming to general classification principles.


Classification principles

Census Geographic Areas are constructed according to the basic classification principles that members within one class are of the same type, classes are uniquely defined so as to be mutually exclusive and, in total, the members in each class cover the entire class.

As a result, the geographical spatial units of each of the Census Geographic Areas are:
  • of the same type, delimited by well-defined criteria;
  • defined by aggregation of whole CDs (except for JTWDZNPs);
  • uniquely identified by codes and names (except Postal Areas);
  • mutually exclusive; and
  • in aggregate cover the whole area to which that hierarchy applies.


Boundary formation

The Census Geographic Areas are designed for the provision of Census data for areas which are not appropriate for inclusion in the ASGC but which have particular significance for some groups of data users. Journey to Work and the AIGC are defined to facilitate the use of work-related transport data and Indigenous statistics respectively. The remaining Census Geographic Areas are approximations of administrative areas defined by an organisation other than the ABS. For example, CEDs are an approximation of the Electoral Divisions defined by the Australian Electoral Commission and POAs are an approximation of the postcodes defined by Australia Post. The Census Geographic Area is an approximation for use with census data but the original area as defined by AEC or Australia Post, etc. remains the official definition.

The CD is the smallest building block which serves the classification structures of both the ASGC and the Census Geographic Areas (see diagram 3 above). Thus, Census Geographic Areas which approximate official administrative areas are created by allocating whole CDs to a particular official administrative area. A CD can only be assigned to one area in each Census Geographic Area classification. Thus, when CDs are completely contained within an official administrative area, they are allocated to the corresponding Census Geographic Area. However, when a CD shares area with more than one official administrative area, a decision must be made as to which area the CD should be allocated. This allocation is made on the basis of the administrative area which contains the majority of the CD's population. This means the ABS representation of the official administrative area will not match the exact size and shape of the official unit. The term used to describe the resulting ABS defined area is 'CD derived'. Once the spatial units have been derived, it is possible to provide census data for them by aggregating data for their component CDs.



User needs

The official administrative areas which are approximated in the Census Geographic Areas are chosen on the basis of demonstrated demands for statistics for these areas. However, other geographic areas not included in the Census Geographic Areas or the ASGC may be accommodated through customised services available for census data.
